Toyota Transmission Identification Tag Chart


Here is a transmission chart for Toyota and Asian Warner transmissions. Toyota transmissions can be identified in two different ways. The first way is by the transmission tag information. The second way is by locating the third digit in the transmission serial number.


Transmission

3rd Digit

Transmission

Tag ID

Serial Number

Type

03-50

B

A40D

03-51

B

A40D

03-55

A

A40

03-56

D

A41

03-60

B

A40D

Cobra Transmission

1-800-293-1848

Email

03-70

C

A42D

03-70L

-

A42DL

03-71

F

A43D

03-71L

H

A43DL

03-71LE

L

A43DE

03-72

P

A44D

03-72L

P

A44DL

03-72L

P

A45DL

Cobra Transmission

1-800-293-1848

Email

03-75

-

A43

03-72

AW372

A44D

03-72

KM148

A44D

03-72LE

-

A44DE

Toyota LC10 Transfer Case Parts

Name of transfer case: Toyota LC-10 Transfer Case Box

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

G130 Suzuki Transfer Case Parts

Name of transfer case: G-130 Suzuki Transfer Gear Box

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

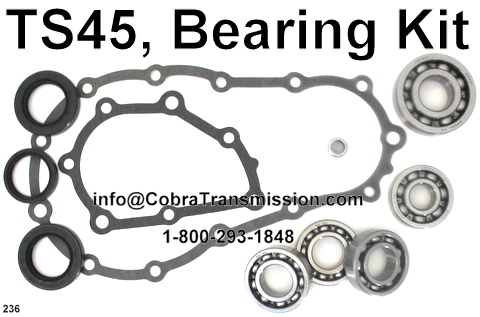

TS45 Suzuki Transfer Case Parts

Name of transfer case: TS-45 Suzuki Transfer Case Gearcase

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Borg Warner Gear WG-1361 Transfer Case Parts

Name of transfer case: Borg Warner BW1361 Gear Transfer Case Gear Box

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

TY10B Nissan Transfer Case Parts

Name of transfer case: TY-10B Nissan Transfer Gear Case

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

TY10A Nissan Transfer Case Parts

Name of transfer case: TY10A Nissan Transfer Case Gear Box

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

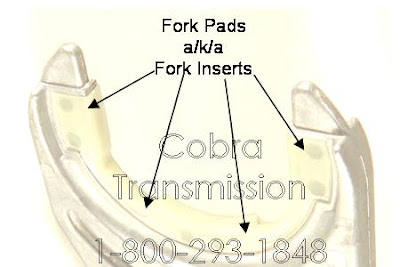

NP 261 Fork Range Fork and Mode Fork

The fork pads are know by several names; fork pads, fork inserts or fork shoes.

The pads for the both the range fork and mode for come molded on the fork itself as illustrated in the picture.

By clicking on the picture you should be able to see a larger version of it.

TY10 Nissan Transfer Case Parts

Name of transfer case: TY10 Nissan Gear Transfer Case Box

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Dana 300 Transfer Case Parts, D-300

Dana Gear 300 Transfer Gearbox

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

TX10 Nissan Transfer Case Parts

Name of transfer case: TX10 Nissan Transfer GearCase

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

T100L Nissan Transfer Case Parts

T-100L Nissan Transfer Case Box

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Transfer Case Kit Contents, Fork Pads

Transfer case have forks and the forks usually have a plastic on the fork know as a fork pad or shoe.

Units that usually wear the pads quickly will contain the pads in the master kit. Some units come with the pad molded right on the fork itself.

In the case where the pad comes molded on the fork, you will need to order the fork if the pad is damaged in your unit.

One unit that comes with a molded fork pad is the NP or New Process 261.

KM120 Mitsubishi Transfer Case Parts

KM-120 Mitsubishi Transfer Gear Case

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

R4A-EL Mazda Transfer Case Parts

Name of transfer case: R4A EL Mazda Transfer Gear Case

Seal Kit
Bearing, Gasket and Seal Kit

Chain

R5MX-D Mazda Transfer Case Parts

R5MX-D Mazda Transfer Gear Case Rebuild Parts

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

HF2A Lexus Transfer Case Parts

HF2A Lexus Transfer GearCase Rebuild Parts

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Kia Sportage Tranfer Case Parts

Kia Sportage 1995-Up, Transfer Gearcase Rebuild Parts

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Borg Warner Gear Identification Information



The BorgWarner Id tag looks like the one illustrated here. The tag is metal and rectangular. It is arched to the transfer case with a bolt at one end.

The identification tag provides the Build Code, the Assembly Code Number, the Serial Number, and the Assembly Number.

For the purpose of ordering an overhaul kit, master kit and or chain the Assembly Code Number (model number} is the one required.

Geo Tracker Tranfer Case Parts

Geo Tracker Transfer Gear Box Rebuild Kit / 1987-1997

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Dana Spicer 28 Transfer Case Parts, D-28

Dana 28 Transfer Gear Box Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

The D-28 gear box is used in the Ford Aerostar with the 3.0L engine from 1990 to 1997.

This gearbox uses a 1.25" inch wide by 43 link round pin design chain.


Dana 21 Transfer Case Parts, D-21

Dana 21 Rebuild Kits and Parts

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Steyr Transfer Case Parts

Steyr Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Borg Warner Gear WG-1339 Transfer Case Parts

Borg Warner Gear BW-1339 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chai

Borg Warner Gear WG-1305 Transfer Case Part

Borg Warner Gear BW-1305 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

This transfer case gear box is used in the CJ Jeep from 1976 to 1979 with Quadra-Trac and in the full size Jeep SJ Truck from 1973 to 1979 with Quadratrac.

This gearbox has a casting number of 13-05 and uses a 2.50" inch wide by 48 link rocker pin design chain.


Dana 20 Transfer Case Parts, D-20




Dana 20 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Dana 18 Transfer Case Parts, D-18

Dana 18 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Borg Warner Gear WG-4484 Transfer Case Parts

The BW4484 gear box is used in the Hummer H1 and H2 from 2002 and up with All Wheel Drive.

Seal Kit

Bearing, Gasket and Seal Kit

Chain

This gearbox has a casting number of 44-84 and uses a 1.25" inch wide by 42 link rocker pin design chain.

Borg Warner Gear WG-4482 Transfer Case Parts

Borg Warner Gear BW-4482 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Borg Warner Gear WG-4481 Transfer Case Parts

Borg Warner Gear BW-4481 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

Borg Warner Gear BW-4472 Transfer Case Parts


Borg Warner Gear BW4472 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

The WG-4472 gear box is used in the Chevrolet Astro Van and GMC Safari Van from 1990 to 1998, the Oldsmobile Bravada from 1991 to 1997, full size Chevy Blazer S-10 from 1995 to 1997, the GMC Jimmy S-15 from 1995 to 1997, the Typhoon from 1992 to 1993 and the Syclone in 1991.

This gearbox has a casting number of 44-72 and uses one of two chains:

  • 1.75" inch wide by 43 link rocker pin design chain, with 2 blue links for the GM L van All Wheel Drive (AWD) 1990 to 1995.
  • 1.75" inch wide by 43 link rocker pin design chain, with 1 blue link for the Blazer, Bravada, Cyclone and Typhoon.







Borg Warner Gear BW-4470 Transfer Case Parts





Borg Warner Gear BW4470 Transfer Case Rebuild Kit

For information on prices and other parts click here.

Gasket and Seal Kit

Bearing, Gasket and Seal Kit

Chain

The WG-4470 gear box is used in the full size Chevrolet and GMC pickups from 1989 to 2000, the full size Chevy SUV Blazer from 1993 to 1994 and the Suburban from 1989 to 2000.

This gearbox has a casting number of 44-70 and uses a 1.50" inch wide by 36 link round pin design chain.
