Nicolas From Romania Had Some Nice Things To Say....

Nicolas needed a chain for his BMW's X5 NV125 Transfer Case with One Blue Link. He contacted us for the chain and we shipped it to Romania. This is what he had to say:

October 18:
HELLO!
I have received the chain yesterday.It's exactly what I need.Thank you very much again!

October 27:
Hello! I've finished the transfer box last week. Everything it's OK. Be sure, as I will need, I will call upon your services .Thank you again. As you asked, here is the picture of the car in front of the my garage. A good day.

We appreciate the nice words Nicolas, Thanks!

39th Annual International South Florida Auto Show

We just posted our first YouTube video. We went to the Auto Show to see the 2010 models and decided to put all the pictures together in a video for you to see.

The two most striking domestic concept vehicles on display are the Cadillac Converu and the Corvette Stingray (beautiful design).

I was unable to post any information on the transmission of any of these vehicles yet since the information is not available. As soon as it becomes known to us you will see it show up on this blog.

We hope you enjoy the movie and please leave us plenty of feedback so we may better improve future videos.

Stage Is Set For A604 Electrical Components

The 41TE is the electrical version of the A604 used in several Chrysler and Dodge vehicles, most notably the mini vans. In this post we will explore the different electrical components and the differences, if any, in year breaks.

The External Neutral Safety Switches are from 1989 and 1990 to 1995 as are the first set of Range Sensors (PRNDL). The second set of Ranger Sensors with blade terminals are from years 1998 and Up.

MLPS Range and Neutral Safety Sensor:
with round terminals 1996-Early 1998
with spade terminals Late 1998-Up

Neutral Safety Sensor (Manual Lever Position) Replaces 7 & 9 Prongs 1993-1997

Pressure Transducer Sensor for the 41TES 2007-Up

Solenoid Block (pictured below) 1989-Up
Solenoid Block Repair Kit (must be original solenoid pack) 89-99 and 00-Up

EPC Solenoid for 41TES 2007-Up
EPC Solenoid Connector for 41TES 2007-Up

Output Sensor VSS 89-Up
Input Sensor TSS 89-Up

Wire Harness Repair Kit 89-Up
Wire Harness Repair Kit for Input and Output Speed Sensor 89-Up
Wire Harness Repair Kit for MLPS / Range Sensor Early 1999 and Up


Please Welcome The New Tech Manual... RE5R05A

We are proud to announce the release of new parts for the RE5RO5A:

Bushing Kit
Technical - Repair Manual
Technicians Diagnostic Guide

Bushing kit comes with two center sun gear, one pump, input and extension housing bushings.

This automatic transmission is used in:
Infinity
FX35
FX45
G35
M35
M45
Q45
QX56

Kia (A5SR1 / A5SR2)
Sorento

Nissan
350Z
Armada
Frontier
Pathfinder
Terrano
Titan
Xterra XE

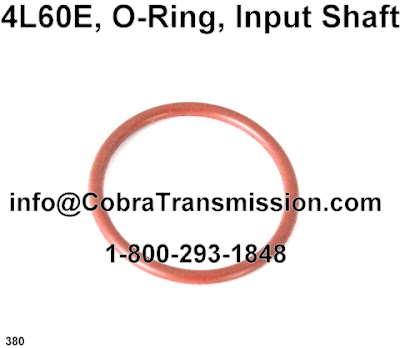

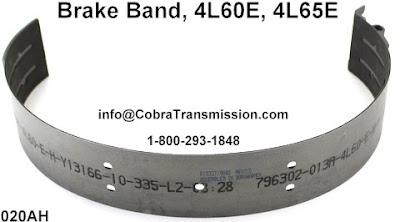

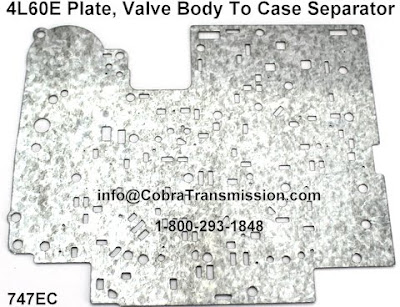

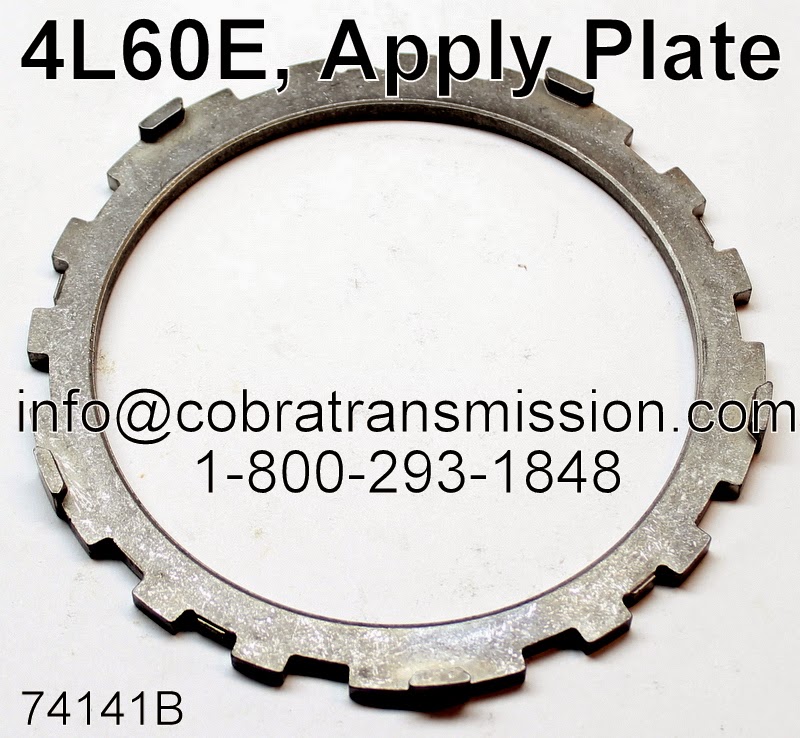

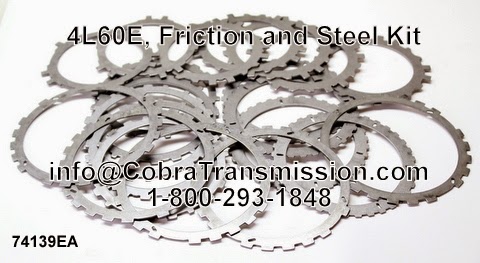

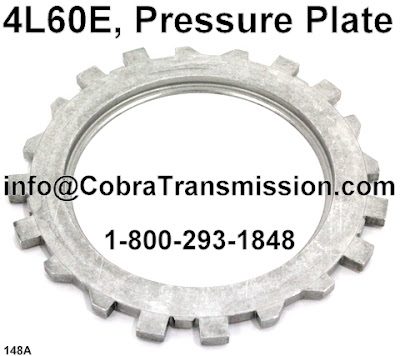

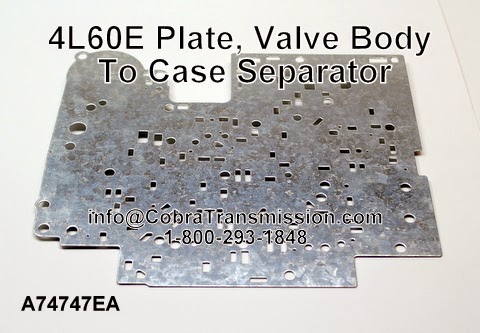

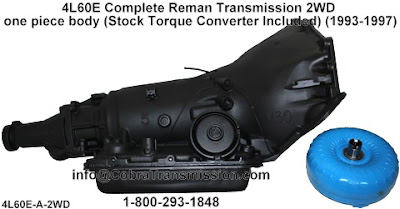

A Whole Lot of Parts for the 4L60E

As far as the 4L60E goes, it is probably one of the most common used 4 speed automatic transmissions. It is used in passenger vehicles, vans, mini vans, SUVs, trucks and others I am sure. It is strong, reliable, adaptable and abundant. Due to these factors parts are readily available and will be long after it is retired from the manufacturing line.

In this post we will dive into other parts used by this unit.

There are two drums in this transmission, lets take a closer look at the differences:

Input Drum with Shaft:
With pilot; excluding 2.8L and 4 cyl (298mm, 30 spline converter) 1993-Up
With out pilot; 2.8L and 4 cyl (245mm, 27 spline converter) 1993-Up
With out pilot; 300mm, 30 spline converter 1998-2005
With out pilot: 300mm, 30 spline converter with reluctor 2006-Up

Reverse Input Drum:
No check ball, has round oil holes in bore 1993
No check ball with large feed holes 1993-Up

The Bushing Kit, Thrust Washer Kit and Bearing kit are the same for all years. Parts can also be purchased individually instead of the kit.

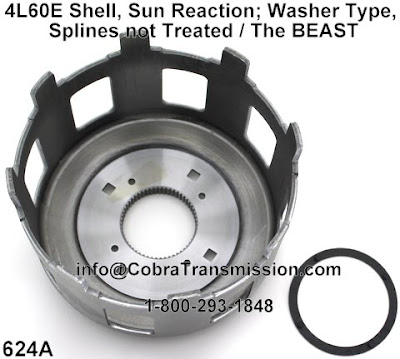

Here is a list of the different Reaction Sun Shells:
Washer type with 4 washer holes 1993-Up
Bearing type with no washer holes 2001-Up
The Beast - Hardened and Thickened with 4 tang washer 1993-Up
Sun Gear and Shell Kit also available

Cooler line fittings are available as follows:
5/16" X 1/4"; 1993-1995
5/16"; 1993-1995
Push-in type: 1996-1997

Steel Cooler Lines with flair fittings (will fit other transmissions):
5/16" X 30, 60 or 72"
3/8" X 30, 60 or 72"






-------------------------------------------



-------------------------------

-------------------------------


-------------------------------


------------------------------------

------------------------------------

------------------------------------

----------------------------------



--------------------------------------




----------------------------------------

---------------------------------------


-------------------------------------

---------------------------------

------------------------------------
