ZF-6HP26, 6HP26A, 6HP26X Transmission - Information

The ZF 6HP26 and 6HP28 series are a rear wheel drive 6 speed automatic transmission.

Depending on model input torque can range from 326 to 444 ft lbs.

Gear Ratio: 1st - 4.17 / 2nd - 2.34 / 3rd - 1.52 / 4th - 1.14 / 5th - 0.87 / 6th - 0.69 / Rev - 3.40

Oil Capacity: Approximately 10 liters including cooling system.

The ZF6HP26 is used by Audi, BMW, Jaguar, Ford and Lincoln. Ford has designated it a the 6R60, Audi as the 09E. The ZF6HP26A 61 and the ZF6HP28AF are an all wheel drive unit and are also used in the Audi and BMW. The ZF6HP26X and the ZF6HP28X is the 4x4 version of the unit; in addition to the the car manufactures listed above the Ranger Rover uses this version.

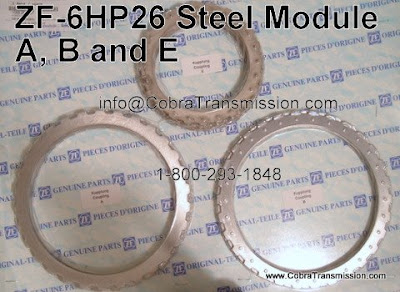

Most parts are shared among the different designs but there will be some differences. Kits could come with extra parts to accommodate more than one design. Below you will find pictures for the overhaul kit, friction module, steel module (all together make it a master kit), and filter. The filter is a pan and filter assembly.

Here is a short list of vehicle models equipped with this transmission:
Audi: A4, A6, A8, TT, S6, S8, Cabriolet, Quattro
BMW: 545i, 5 Series, 6 Series, 645ci, 645Li, 745i, 745Li, 750i, 750Li, X5
Jaguar: S Type, XJ Vanden Plas, XJ8, XJ8L, XJR, Super 8, XK8, XKR
Land Rover: LR3, Ranger Rover Sport HE and Sport
Lincoln: Navigator
