ZF5HP24 Gasket and End Plate

The gasket pictured below is the one that goes behind the Intermediate plate. The Intermediate Plate is where the Pump bolts on to. The ZF part number of the gasket is 0501 315 821.

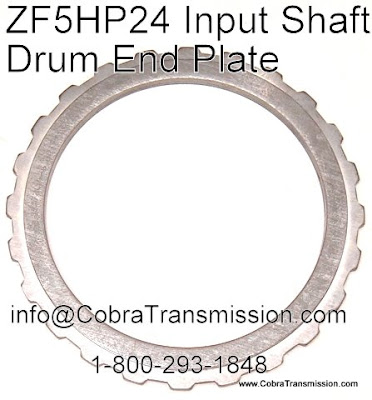

The End Plate pictured is the one that goes into the Input Shaft Drum. The part number for this part is 1058 370 057. The End Plate is the is secured in by a snap ring and caps the clutch pack into the drum.
