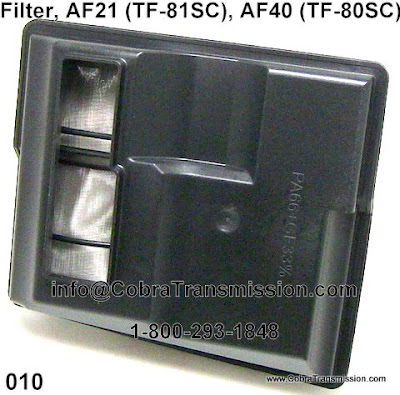

TF-80SC / 81SC Valve Body Sidelined?

The TF-80SC, an automatic 6 speed unit, is available new and should be available re-manufactured soon (no set date for the reman at time of posting).

This unit is manufactured by Aisin Warner and is it also referred to as:

- TF-80SC (Renault Espace, Vel Satis; Saab 93)
- TF80SC
- AWTF-80SC (Vauxhall Astra, Zafira, Insignia, VectraC)
- AWTF80SC (Peugeot 307, 407, 607,
- AW TF-80SC (Opel Astra-G, Zafira, Insignia, Vectra-C; Volvo S70, XC70, XC90)
- AF40-6 (Alfa Romeo Brera, Spider, 159; Buick Regal; Cadillac BLS; Chevrolet Vectra; Lancia Delta)
- AM6 (Citroen C4, C5, C6, C8, Synergie Evasion)
- AF21 / TF81-SC (Ford 500, Fusion, Mondeo; Lincoln MKZ, Zephyr; Mercury Milan, Montego)
- AWF21 (Land Rover Freelander II, LR2)
- AW6A-EL (Mazda 6S, CX7, CX9, MPV)

Vehicles mentioned above are a partial listing and there could be other makes and models not listed. This transmission was introduced around 2006 and vehicles listed above could have a different transmission depending on year and engine size.

Ford Cosworth Escort And Sierra Trasnfer Case Chain

Cosworth is a high-performance company founded in London specializing in engines and transmissions and associated electronics. Presently located in England, with a presence in the US, they have been a part of World Rally Championship, Formula One and other Motor Sport events.

In Europe the Ford Escort and Sierra equipped with the MT75 manual transmission where AWD units. The transfer case chain is available new and more information is noted below.

Your information might vary from this one and we encourage our readers to post any information they might have.

Transfer case: 888T7A195AA
Reorder part number: 6160975
Chain code: 1645380

The chain has 66 pitches or 33 links, it is aproximatley 1.25 inches wide with a rocker joint pin.






(Borg Warner MT-75)

Here Comes The NV3550 Parts Store

The NV-3550 is a 5 speed manual rear wheel transmission that came in the Jeep Cherokee and Wrangler (Getrag Design).

The parts descriptions and information apply to Getrag 290, NV1500, 3500 and 3550 gearboxes.

Seals
- Front (HM290-10)
- Inside Stick with 2.16" OD (290-45)
- Inside Stick with 2.69" OD (290-45A)
- Rear; 4x2 65mm OD (10289)
- Rear; 4x4 90mm OD (23049636)

Forks
- Pivot Ball (290-102)
- Roll Pin (8672316)
- 1-2 Shift 1988-1992 (290-23)
- 1-2 Shift 1.875" NV3500 (25416)
- 1-2 Shift 1.950" NV3500 (25416)
- 3-4 Shift (1988-1992) (290-23A)
- 3-4 Shift (1993-Up) (25418)
- 5th-Reverse Shift, 1988-1992 (290-23B)
- 5th-Reverse Shift, NV3500 Full Size Truck (1993-Up) (20046)
- 5th-Reverse Shift, NV3500 S10 (1993-Up) (20047)

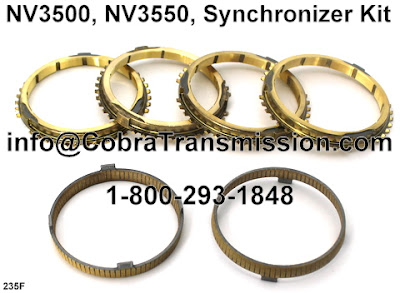

Synchronizer
- 1-2 Synchro Assembly (1988-Early 1993) 18132
- 1-2 Synchro Assembly (Late 1993-Up) 34403
- 3-4 Synchro Assembly (18130)
- 5-Rev Synchro Assembly (1988-Early 1993) 18132
- 5-Rev Synchro Assembly (Late 1993-Up) 18723
- Synchro Key, Spring and Ball Kit (Requires One Kit per Synchro Assembly (WT290-K)
