Mitsubishi KM Series Transmission Pulse Generator

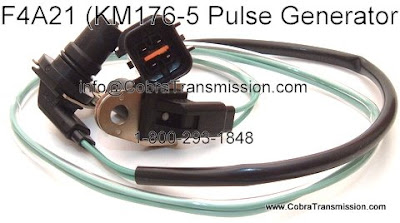

There are several KM series transmission by Mitsubishi that uses a pulse generator, also referred to as the input / output sensor. There are three basic configuration to the sensor. All three cover the years from 1985 - up, one has a round connector, the other two have square connectors one having the connector on a long wire and the other with even length wires. The one pictured below has the square connector on a long wire.

A short list of the units that use this electrical component is:
- KM175-5 (F4A22)
- KM176-5 (F4A21)
- KM177
- KM177-8 (F4A23)
- A4BF-3 (2000-up)
